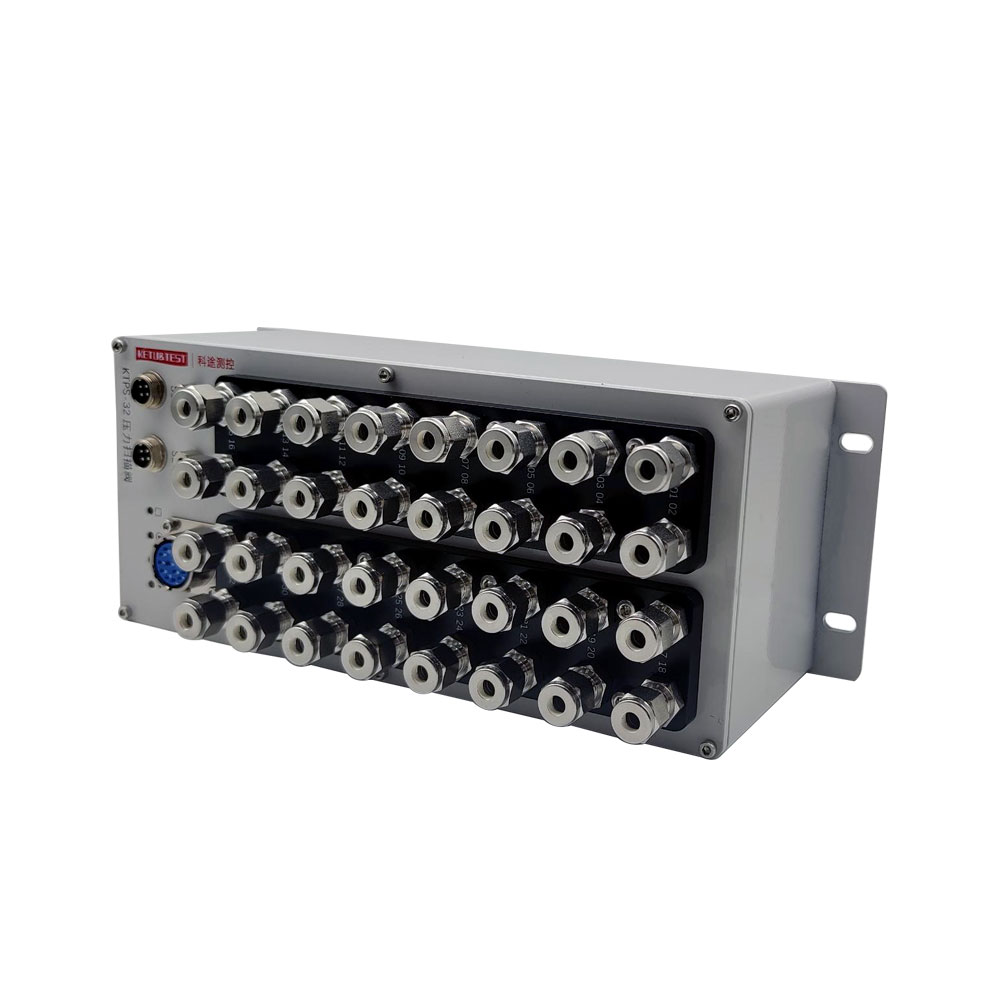

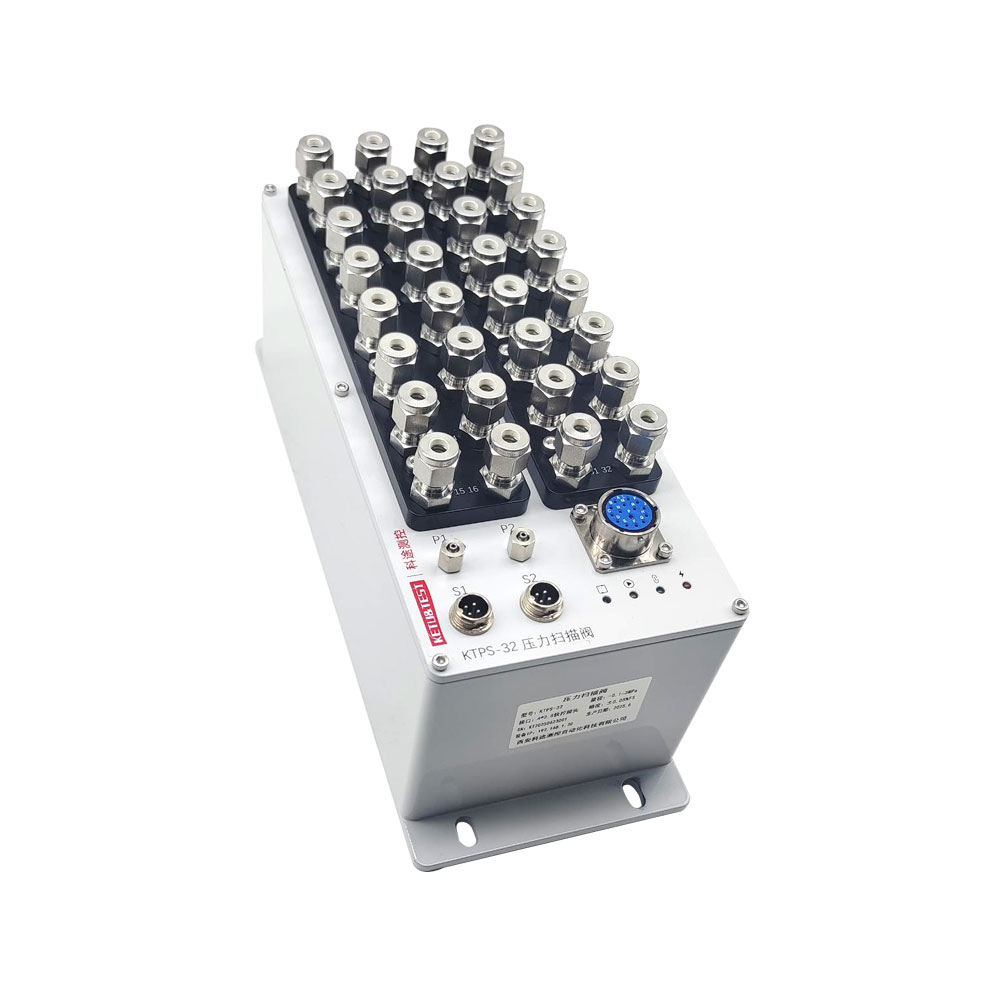

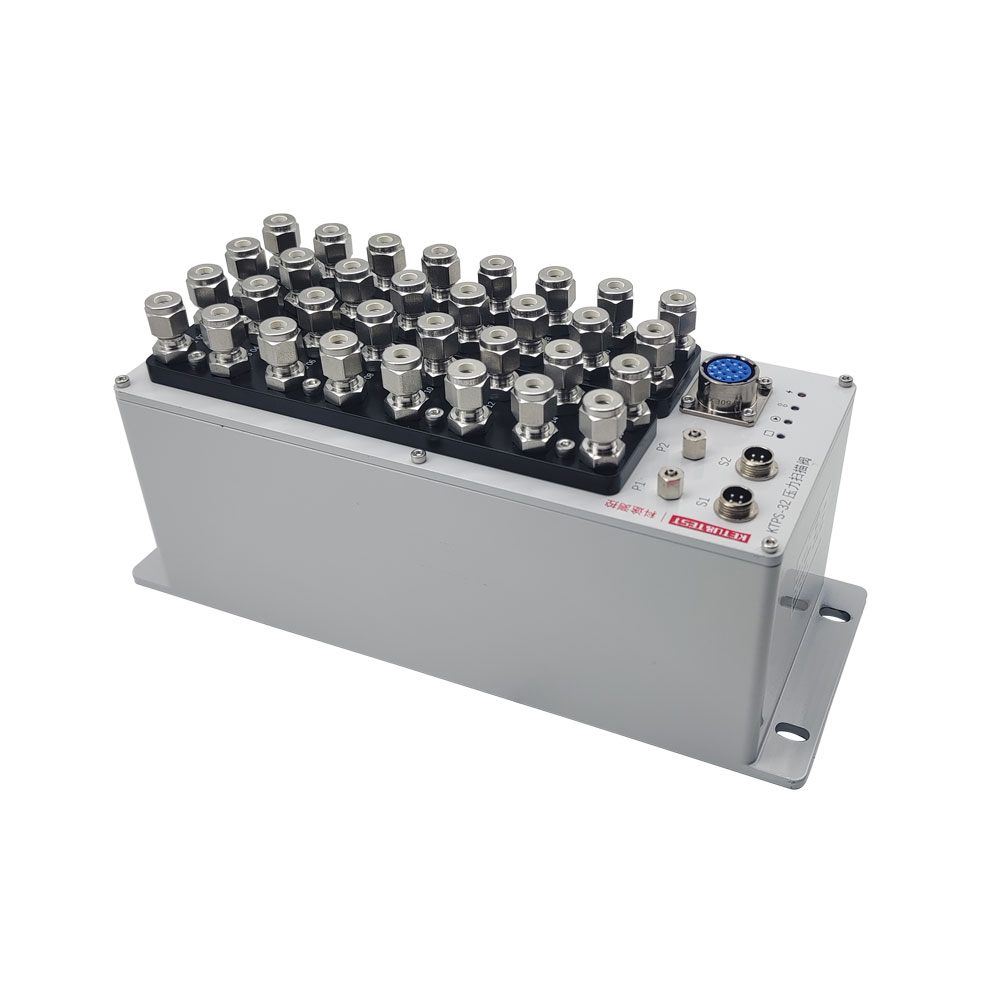

KTPS-32 Pressure Scanner

The KTPS-32 pressure scanner integrates 32 high-precision silicon piezoresistive sensors internally, with the sensors and acquisition system undergoing comprehensive temperature compensation. It is primarily designed for multi-channel gas pressure measurement, offering high accuracy (0.05% FS full scale) and high reliability. The unit supports switchable pressure measurement modes, including absolute, gauge, and differential pressure.The KTPS-32 is compatible with a wide range of media types, such as gases, liquids, and gas-liquid mixtures. Its internal pressure sensors are specially treated to enhance durability. Customized sensors are also available for measuring special gases like hydrogen, chlorine, and ammonia.Equipped with 24-bit AD conversion, the KTPS-32 significantly improves sampling accuracy. It supports high sampling rates of up to 10,080 Hz per channel

Lead time：2 Month

Includes 13% VAT

Gauge Pressure Range

Ranges Absolute Accuracy ±500Pa ±2Pa ±1000Pa ±2Pa ±2500Pa ±5Pa ±3kPa ±6Pa ±7kPa ±14Pa ±10kPa ±20Pa ±18kPa ±18Pa ±100kPa ±100Pa -100~+200kPa ±150Pa -100~+240kPa ±170Pa -100~+310kPa ±205Pa -100~350kPa ±225Pa -100~+420kPa ±260Pa -100~690kPa ±395Pa -100~+860kPa ±480Pa -100~1030kPa ±565Pa -100~1350kPa ±725Pa -100~+1720kPa ±910Pa -100~2060kPa ±1080Pa -100~2580kPa ±1340Pa -100~3440kPa ±1770Pa -100~+4480kPa ±2290Pa -100~5170kPa ±2635Pa -100~5860kPa ±2980Pa -100~7580kPa ±3740Pa

Brand	KETU&TEST
Model	KTPS-32
Pressure Type	Gauge Pressure, Absolute Pressure, Differential Pressure
Full-Scale Accuracy	Within 35kPa full scale: ±0.1%FS Above 35kPa full scale: ±0.05%FS
Gauge Pressure Ranges & Absolute Accuracy	Range	Absolute Accuracy
	±500Pa	±2Pa
	±1000Pa	±2Pa
	±2500Pa	±5Pa
	±3kPa	±6Pa
	±7kPa	±14Pa
	±10kPa	±20Pa
	±18kPa	±18Pa
	±100kPa	±100Pa
	-100~+200kPa	±150Pa
	-100~+240kPa	±170Pa
	-100~+310kPa	±205Pa
	-100~350kPa	±225Pa
	-100~+420kPa	±260Pa
	-100~690kPa	±395Pa
	-100~+860kPa	±480Pa
	-100~1030kPa	±565Pa
	-100~1350kPa	±725Pa
	-100~+1720kPa	±910Pa
	-100~2060kPa	±1080Pa
	-100~2580kPa	±1340Pa
	-100~3440kPa	±1770Pa
	-100~+4480kPa	±2290Pa
	-100~5170kPa	±2635Pa
	-100~5860kPa	±2980Pa
	-100~7580kPa	±3740Pa
Absolute Pressure Measurement Method	Gauge Pressure + Atmospheric Pressure
Differential Pressure Measurement Method	16 pressure channels share one common differential pressure reference port
AD Resolution	24-bit
Number of Channels	32
Compatible Media Types	Gases, Liquids, Gas-Liquid Mixtures
Sampling Frequency	0–10080 Hz per channel (16 channels sample simultaneously; multi-unit networking via switch connection)
Timestamp Output	Absolute or relative timestamp option per data packet; ensures fully traceable data upload and storage
Pressure Ports	4 x 2.5 mm push-to-connect fittings, 1.6 mm expansion tube fittings, stainless steel ferrule connectors
Communication Protocol	TCP/IP
Auto-Zero Capability	One-click software calibration & zeroing
Calibration Interval	12 months
Operating Temperature Range	0–60 °C
Compensated Temperature Range	0–60 °C
Ambient Temperature (Non-Operating)	–20-80 °C
Structure Type	Universal Integrated Type
Trigger Modes	Software trigger, Hardware trigger (3.3 V TTL)
Power Supply	220 VAC, 50 Hz
Software	"Ketusoft" data measurement software (C# based). Features: waveform display, channel selection, multiple pressure unit conversion, one-click calibration, video monitoring, data monitoring, one-click data storage, inter-channel data computation with real-time storage, pressure threshold setting, data storage monitoring, background image switching. SDK provided for customer integration.
