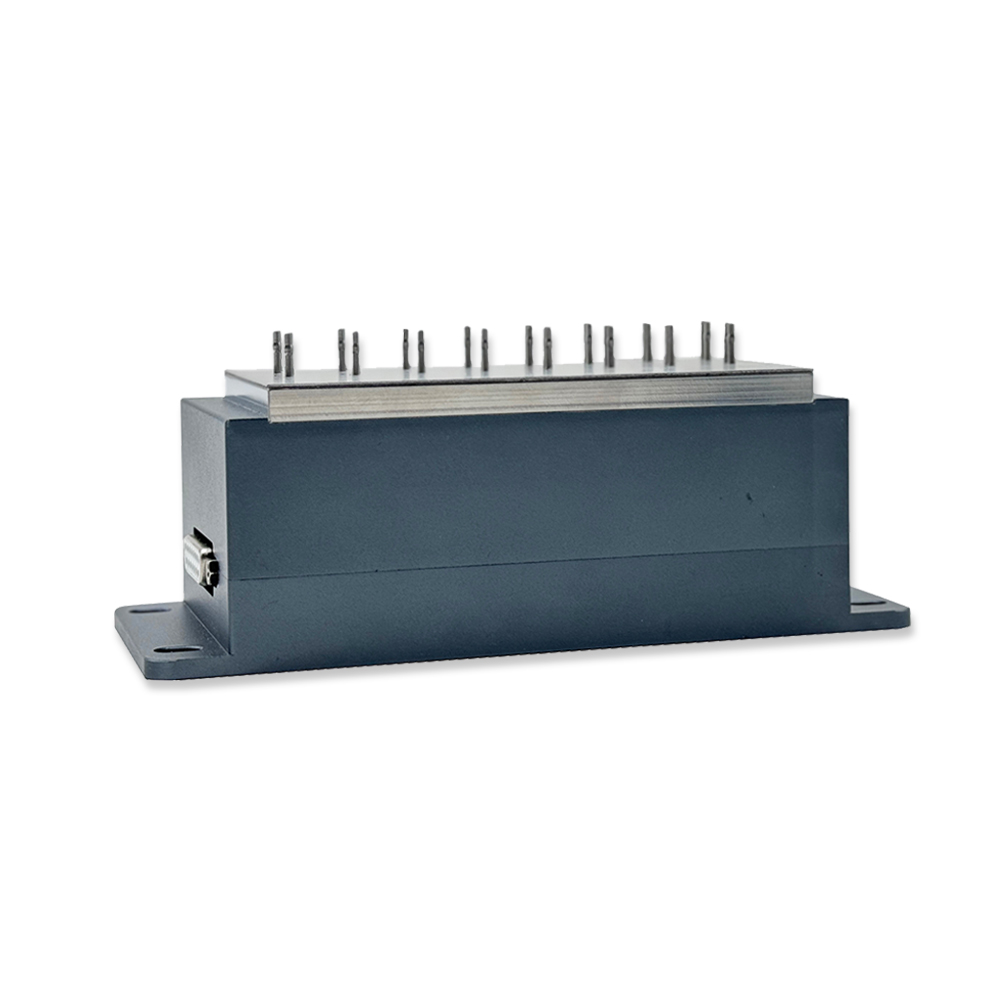

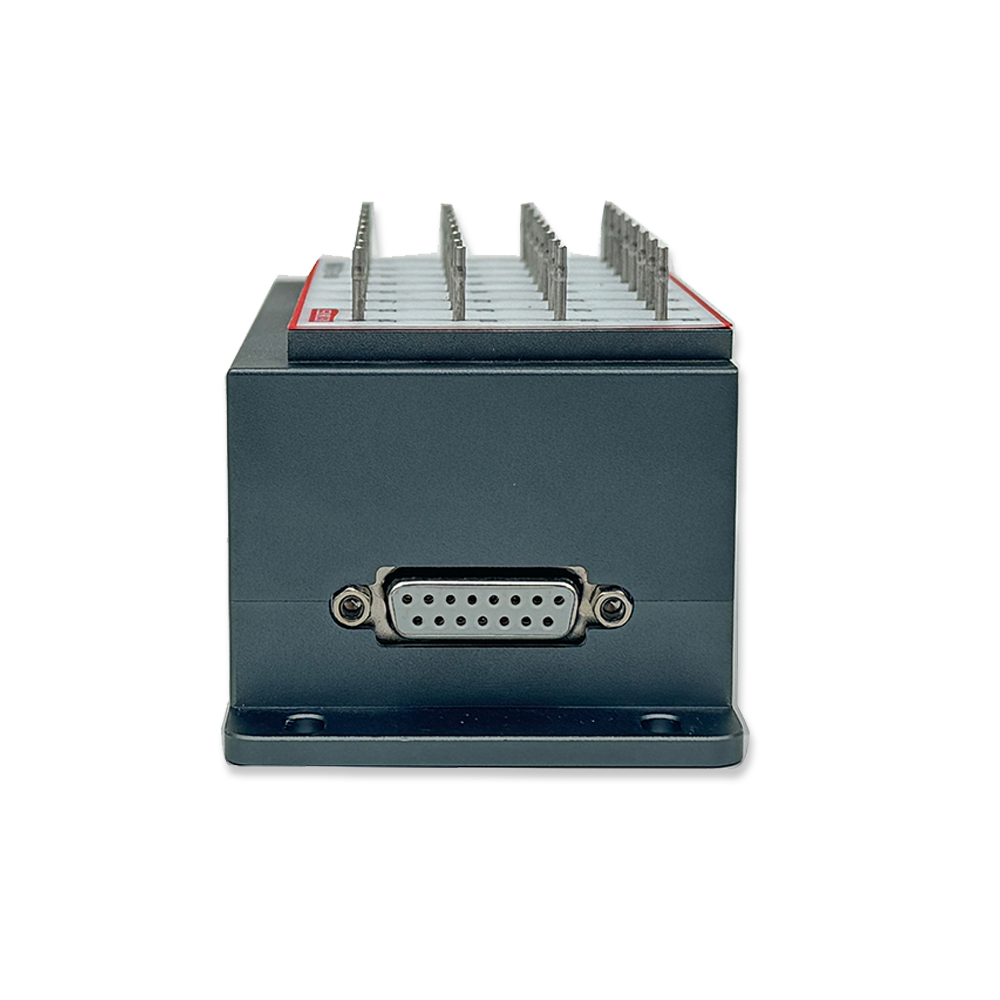

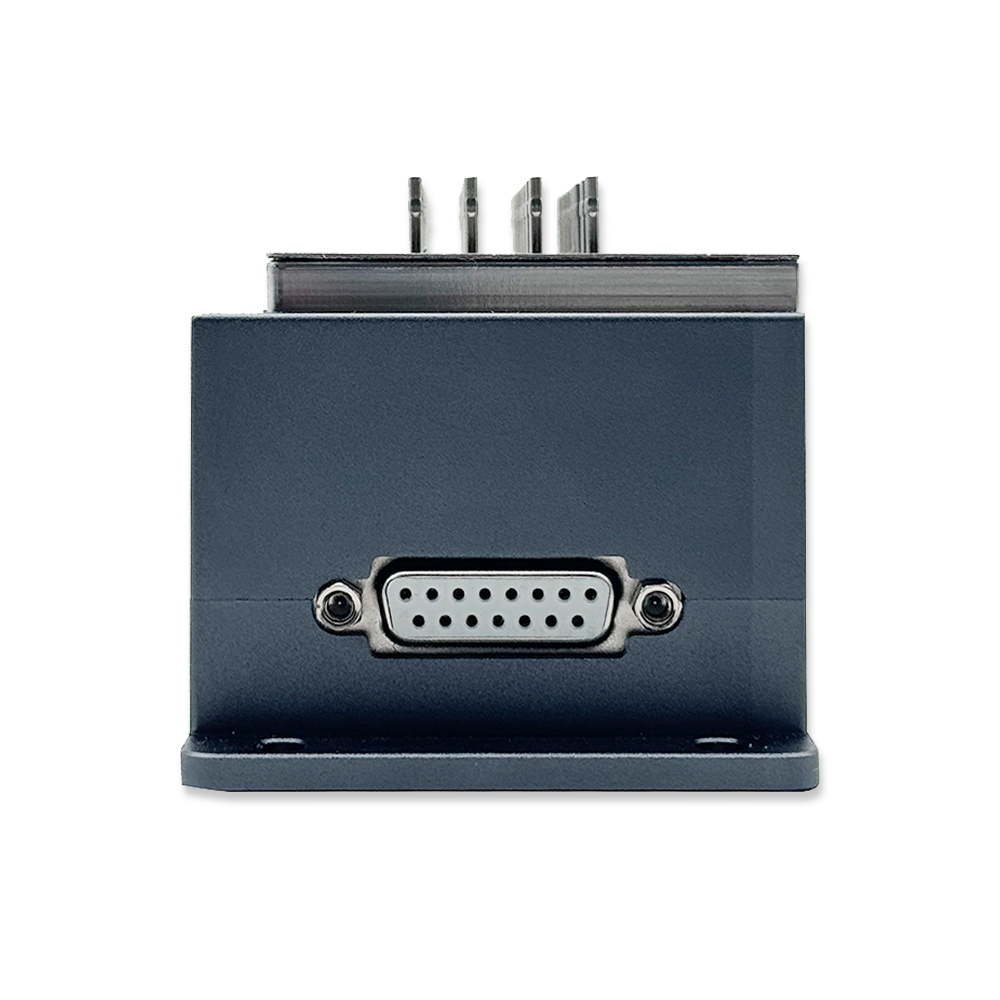

KTSA-32 Pressure Scanner

The KTSA-32 pressure scanner is a micro-differential pressure scanner independently developed by KETU&TEST. It features 32 acquisition channels, with a minimum measurement range of 500Pa and a maximum of 2500Pa. The device uses a 16-bit ADC, achieving a single-channel sampling rate of 0-500Hz/channel (adjustable), and an acquisition accuracy of 0.1%FS or 0.05%FS (optional). The device supports TCP/IP communication protocol.

Lead time：2 Month

Includes 13% VAT

Gauge Pressure Range

Range Minimum: ±500Pa, Maximum: ±2500Pa

Brand		KETU&TEST
Model		KTSA
Structure		Compact Integrated Design
Pressure Type		Gauge Pressure
Medium Type		Dry, Non-Corrosive Gases
Range		Minimum: ±500Pa, Maximum: ±2500Pa
Number of Channels		16, 32, or 64 channels
Accuracy		±0.1%FS or ±0.05%FS (Selectable)
Sampling Rate		0-500Hz per channel (Adjustable)
AD Resolution		16-bit AD
Pressure Interface		1.6mm Expansion Tube
Trigger Method		Software Trigger & Hardware Trigger
Communication Protocol		TCP/IP
Zero Calibration		One-Click Software Calibration & Zeroing
Multi-Unit Networking Method		External Switch
Operating Temperature Range		0-50℃
Storage Environment		Temperature: -20°C to +85°C
Power Supply		220VAC 50Hz
