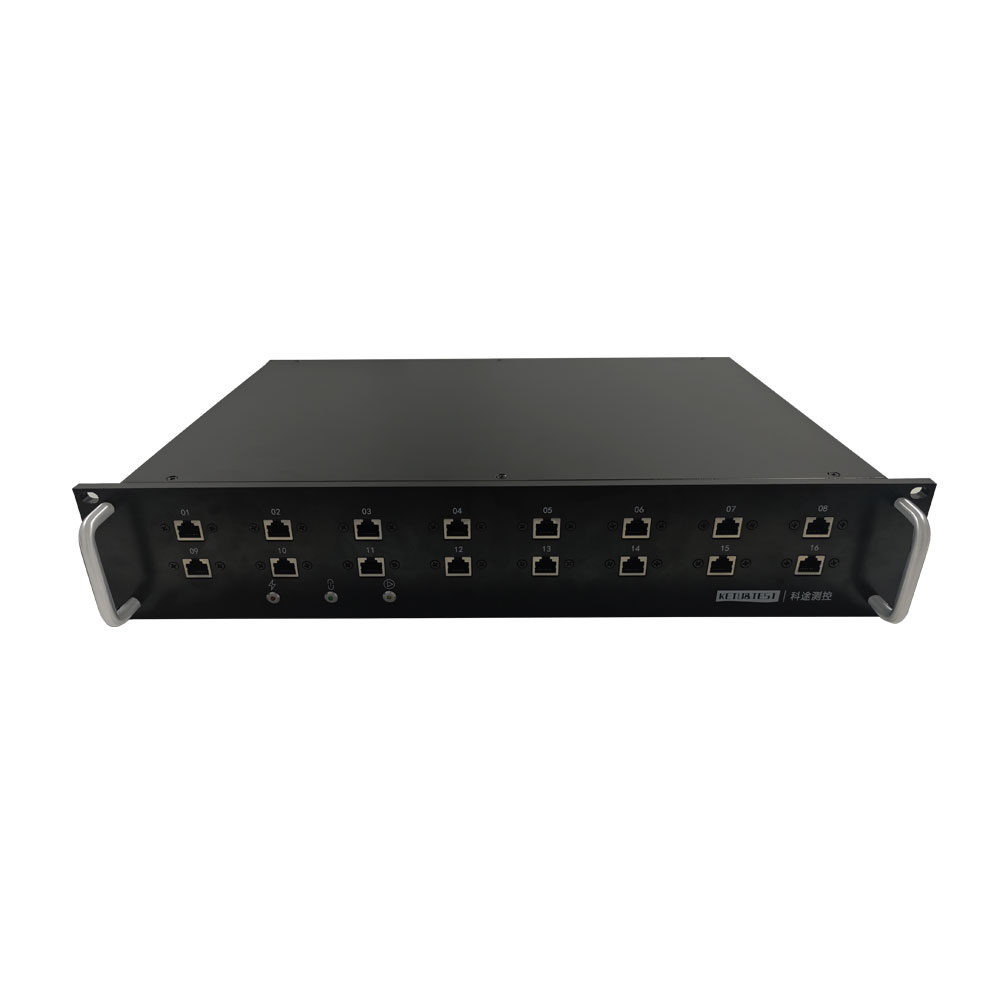

KTDA-ST16 Strain Data Acquisition Device

The KTDA-ST16 Strain Data Acquisition Device of KETU&TEST is a high-performance data acquisition device. A single unitsupports synchronous acquisition across 16 channels, with a measurement range of 40,000 με and supports customization.The device offers a top accuracy of up to 0.01% FS and is compatible with full-bridge, half-bridge, and quarter-bridgeconfigurations. It supports standard strain resistances of 120Ω and 350Ω, as well as user-defined resistance values.Featuring a 24-bit ADC, the sampling rate is adjustable from 0 to 10 kHz. All channels within the device perform synchronoussampling. Multiple units can be networked and expanded via an Ethernet switch to meet large-scale testing requirements. Thebridge excitation voltage utilizes real-time feedback acquisition technology, significantly enhancing system adaptability andmeasurement accuracy.

Lead time：2 Month

Includes 13% VAT

Gauge Pressure Range

Measuring Range: ±40000με(Range can be customized)

Brand		KETU&TEST
Model		KTDA-ST16
Structure Type		Universal Integrated Type
Number of Channels		16
Measuring Range		±40000με(Range can be customized)
Measuring Accuracy		±0.01%FS
Absolute Accuracy		±4με
Sampling Rate		0-10kHz adjustable
Excitation Output		±2.5V
Supported Bridges		Full Bridge, Half Bridge,1/4 Bridge
Supported Gauges		120Ω, 350Ω, and User-defined
Communication Interface		Ethernet Port
ADC Resolution		24-bit
Connection Method		RJ45
Communication Protocol		TCP/IP
Operating Temperature		-40℃~80℃
Power Supply		220V-24V
Software		"Ketusoft" data measurement software (C# based). Features: waveform display, channel selection, multiple pressure unit conversion, one-click calibration, video monitoring, data monitoring, one-click data storage, inter-channel data computation with real-time storage, pressure threshold setting, data storage monitoring, background image switching. SDK provided for customer integration.
