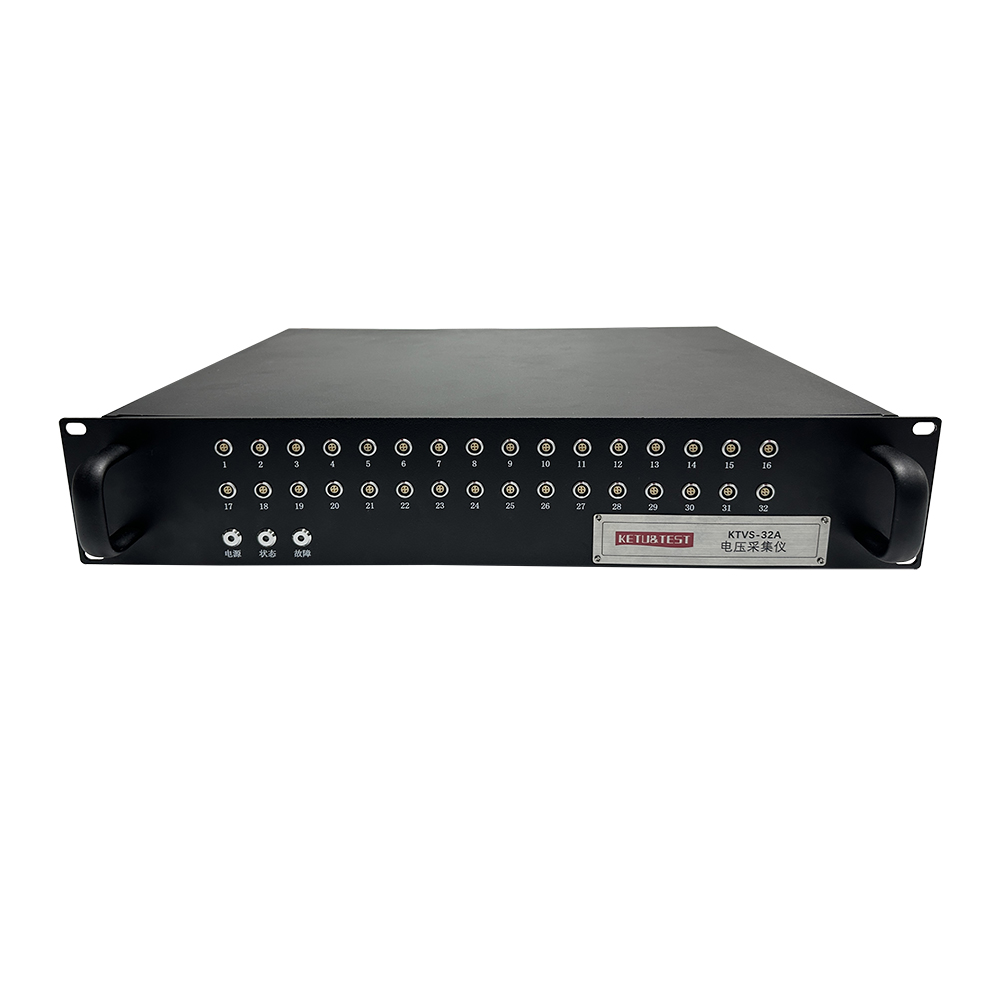

KTVS-32A VOLTAGE SAMPLE

KTVS-32A is a highly integrated multi-channel voltage data acquisition device independently developed by KETU&TEST. It features 32 synchronized acquisition channels with independent galvanic isolation, achieving an acquisition accuracy of up to 0.05% FS. The device is equipped with 24-bit ADC, supports a single-channel sampling rate of up to 10 kHz, and is compatible with a voltage input range of 10 V.The system is primarily powered by an external 220 VAC supply and is also equipped with a built-in battery module. In the event of external power failure, the device automatically switches to battery power. In addition, the device provides a 24 VDC excitation power supply for external sensors, significantly enhancing operational flexibility.The device includes a built-in storage card to support local data storage, as well as offline buffering and automatic data retransmission functions.

Lead time：2 Month

Includes 13% VAT

Gauge Pressure Range

Brand		KETU&TEST
Model		KTVS-32A
Number of Channels		32 channels per unit
Input Signal		Voltage signals ±10 V (supports 24 VDC excitation for 4-wire voltage-output sensors)
Accuracy		±0.05%FS
Sampling Rate		10 kHz per channel
ADC Resolution		24-bit
Communication Protocol		TCP/IP
External Trigger		3.3 V high/low level trigger
Channel Synchronization (Single Unit)		Hardware-based parallel acquisition across all channels
Timestamp		Supports both absolute and relative timestamps
Interface		4-pin LEMO 0B connectors
Channel-to-Channel Isolation Voltage		≥1000V
Operating Temperature		-20°C ~ +60℃
Ambient Temperature		-20℃ ~ +65℃
Trigger Mode		Software trigger, hardware trigger
Power Supply		220VAC
Power Consumption		9 W under normal operation; ≤30 W during charging.
Dimensions (W × H × D)		482×88×304mm
Other		Built-in processor, storage drive, and power module
