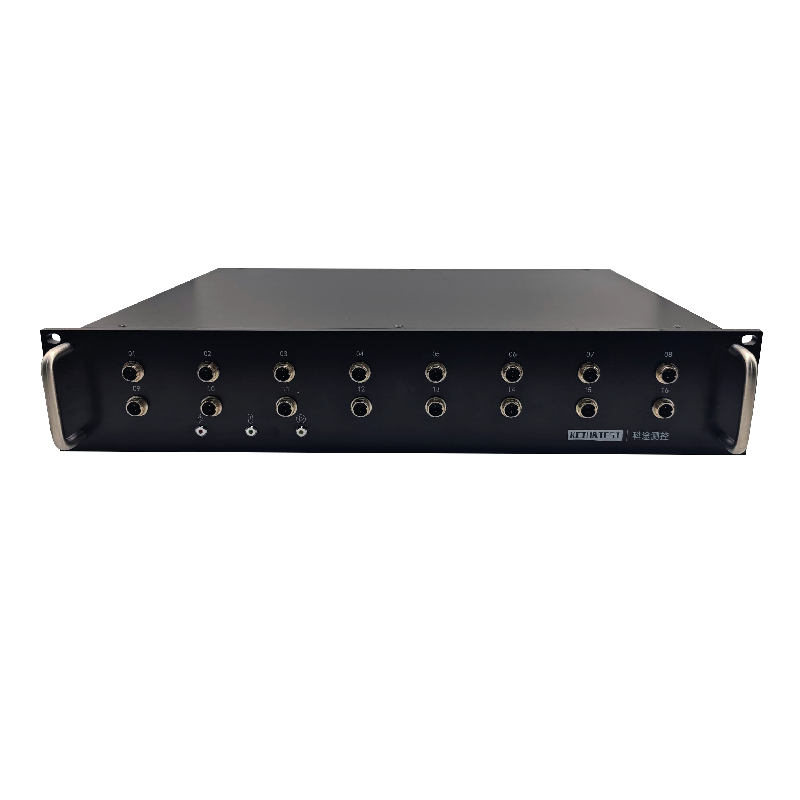

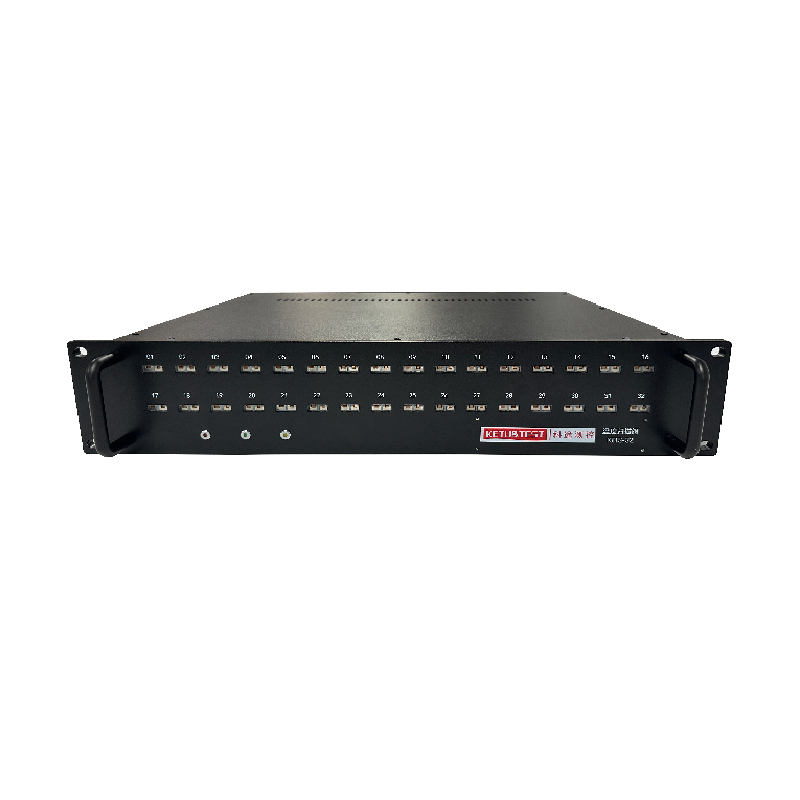

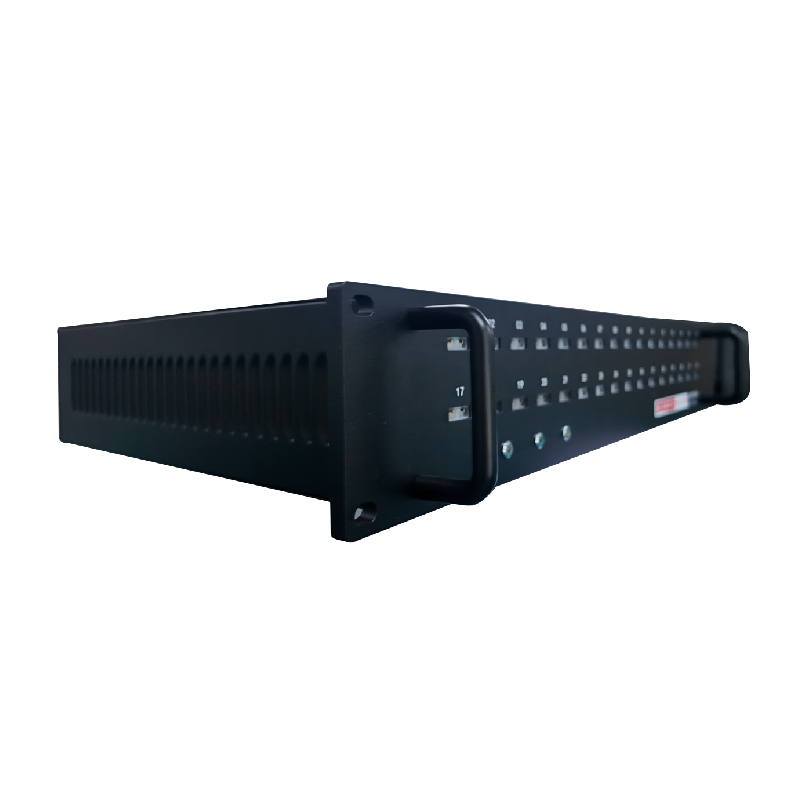

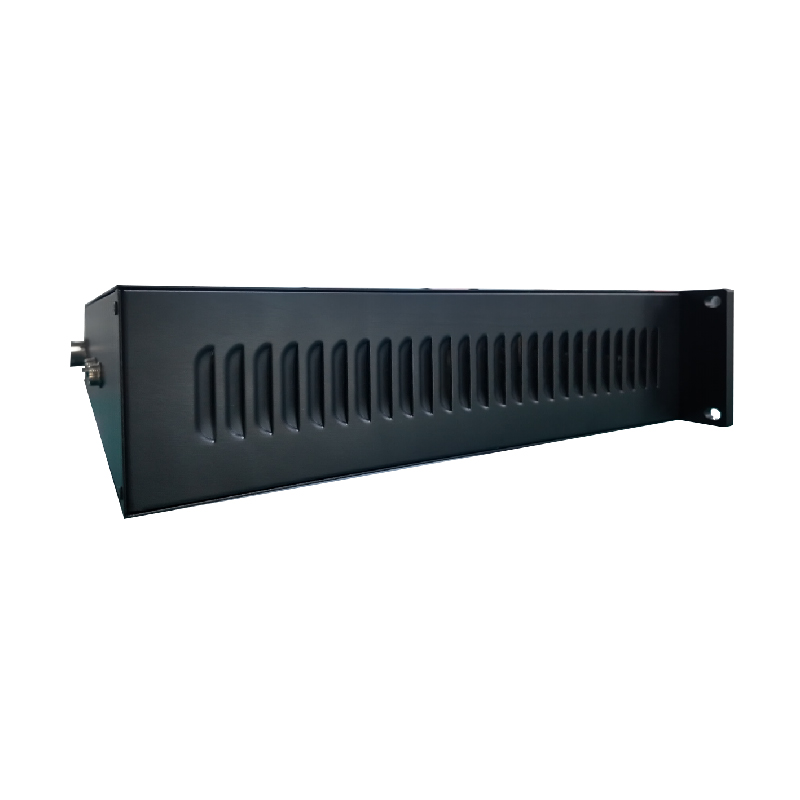

KTTS-32 Temperature Scanner

The Temperature Scanner supports temperature acquisition from multiple measurement points, eliminating the need forindividual equipment configuration per point required by traditional methods, thereby significantly improving data collec-tion efficiency.① Multi-channel Synchronous Acquisition: The device is available in 16 or 32-channel versions and supports interconnec-tion of multiple units. It can simultaneously measure temperature data from different locations, simplifying wiring andenhancing collection efficiency.②High Precision and Sampling Rate: The temperature scanner of KETU&TEST achieves a maximum accuracy of 0.5C withan adjustable sampling rate of 0-10 kHz. It can accurately capture minute voltage changes and reflect transient temperaturerise processes in real-time.③ Strong Environmental Adaptability: Specifically designed for complex working conditions, the temperature scanner ofKETU&TEST offers excellent resistance to vibration and electromagnetic interference.

Lead time：2 Month

Includes 13% VAT

Gauge Pressure Range

Thermocouple Type Standard types including K, T ,E ,J ,S ,R ,B ,etc

Brand		KETU&TEST
Model		KTTS
Structure Type		Universal Integrated Type
Thermocouple Type		Standard types including K, T ,E ,J ,S ,R ,B ,etc.
Number of Channels		32 channels/unit
Sampling Rate		Adjustable, 0-10 kHz
Calibration Cycle		12 months
Connection Type		Standard Connectors
Trigger Mode		Software Trigger & Hardware Trigger
Communication Protocol		TCP/IP
Operating Temperature Range		0–50 °C
Ambient Temperature Range		-20 – 80 °C
Power Supply		220VAC, 50Hz
Dimensions		482.6 × 88 × 348 (mm)
Software		Ketusoft data measurement software developed in C#. Features include waveform display, channel selection, multi-unit pressure conversion, one-click calibration, video monitoring, real-time data monitoring, one-click data storage, inter-channel data calculation with real-time storage, pressure threshold settings, data storage monitoring, background image switching, and more. An SDK is provided for easy customer integration.
