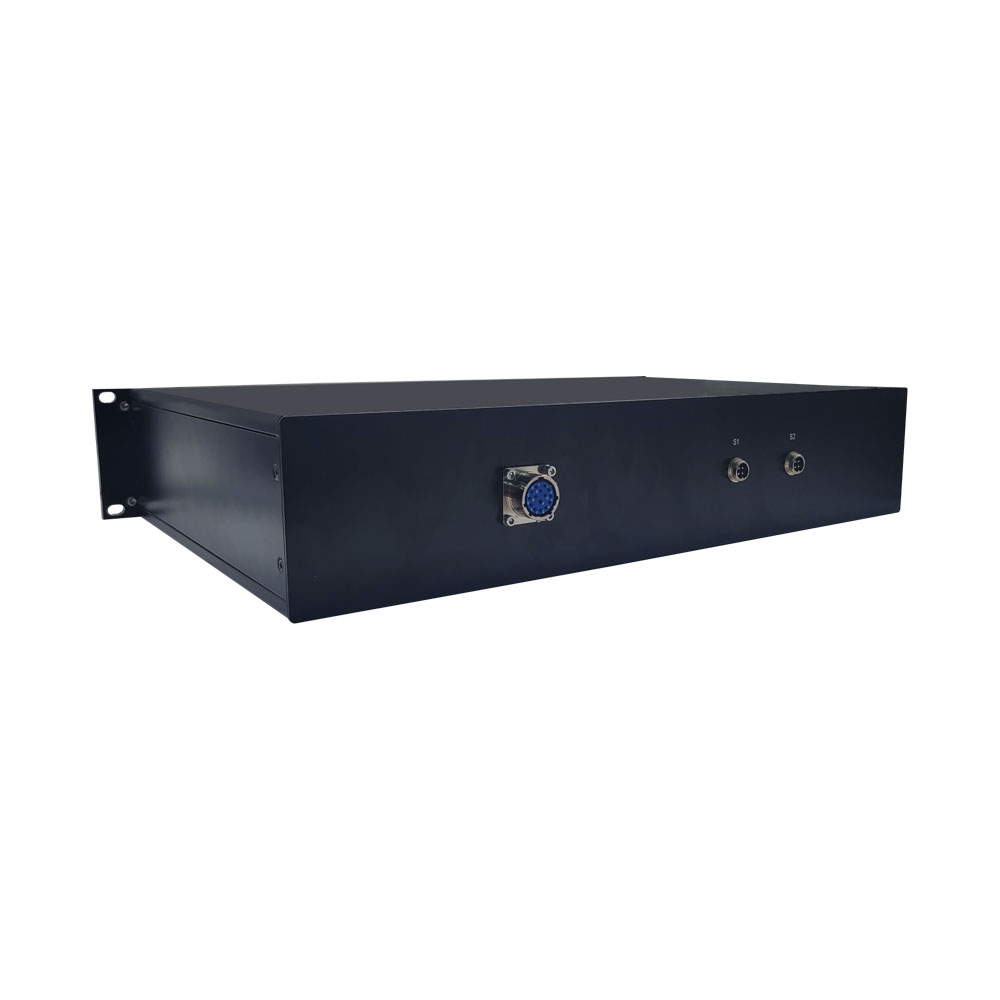

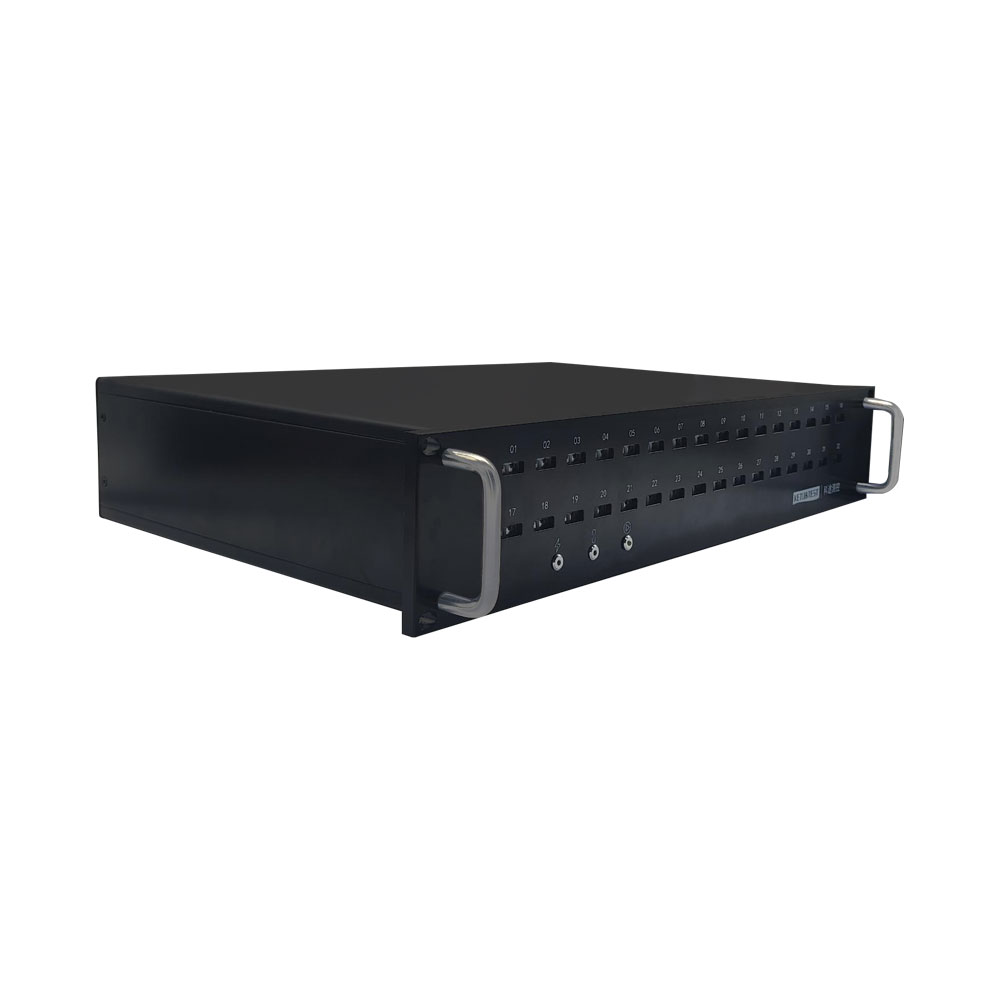

KTRTCP-16SGA Liquid Pressure Scanner Module

The KTRTCP-16SGA Liquid Pressure Scanner module incorporates 16 high-precision pressure sensors engineered specifically for pressure measurement of liquid media. It achieves a maximum accuracy of 0.05% FS and supports multiple measurement types, including gauge, absolute, and differential pressure. Featuring a 24-bit ADC, the module offers an adjustable per-channel sampling rate from 0 to 10 kHz, with true synchronous acquisition across all channels. Three integrated operational modes—Measurement, Purge, and Calibration—facilitate real-time maintenance and system calibration, thereby enhancing long-term measurement stability and data reliability. The module ensures coordinated and stable performance through its TCP communication protocol and integrated NTP clock synchronization, making it suitable for pressure monitoring in complex application environments.

Lead time：2 Month

Includes 13% VAT

Gauge Pressure Range

Pressure Range: Range can be customized

Brand		KETU&TEST
Model		KTRTCP-16SGA Liquid Pressure Scanner Module
Pressure Type		Gauge, Differential, Absolute
Medium		Liquid
Pressure Range		Range can be customized
Best Accuracy		±0.05% FS
Channels		16
Sampling Rate		0 - 10 kHz per channel (individually configurable per channel)
Valve Actuation Pressure		≤ 0.7 mPa
Purge Pressure		≥ 0.7 mPa
Calibration Function		Unified high-pressure port for one-click multi-range calibration via valve actuation
Auto-Zero Capability		Software one-click zero calibration
AD Resolution		24-bit
Pressure Port		1.6 mm tube (expandable) (customization supported)
Trigger Mode		Software & Hardware Trigger
Communication Protocol		TCP/IP
Multi-unit Networking		Via Ethernet Switch
Calibration Cycle		12 months
Power Supply		24 VDC
Software		The software, developed in C#, enables simultaneous data processing from multiple pressure and temperature scanning modules. It supports standalone operation or synchronized multi-unit networks. Key features include: waveform display, channel selection, one-click calibration, video monitoring, real-time data monitoring, one-click data storage, inter-channel data computation, configurable pressure/temperature thresholds with alarm monitoring, and storage status monitoring. The software can also integrate data from other acquisition devices based on customer requirements, provided the communication protocol is supplied.
