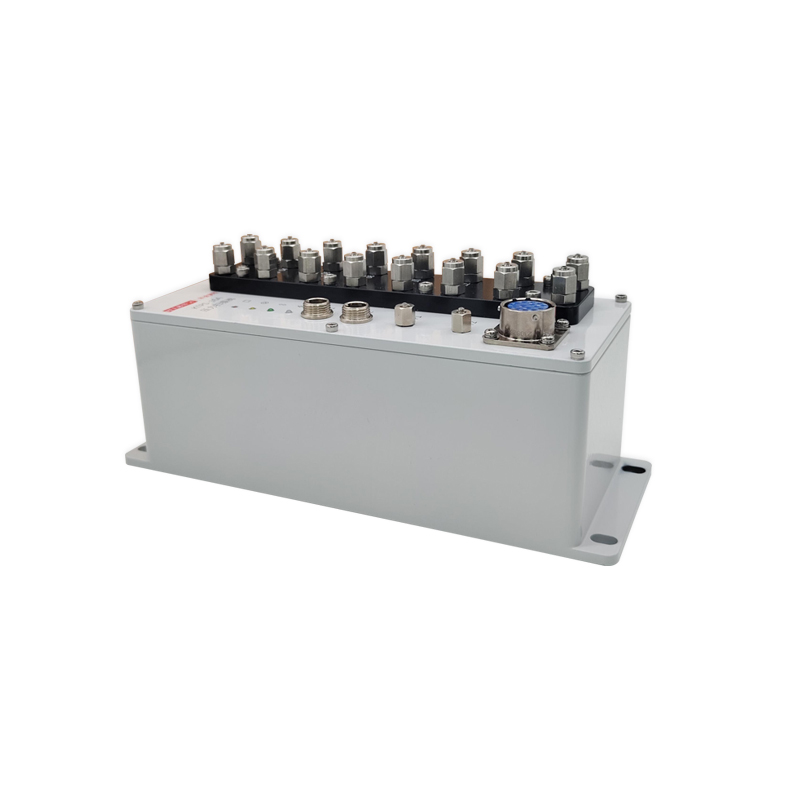

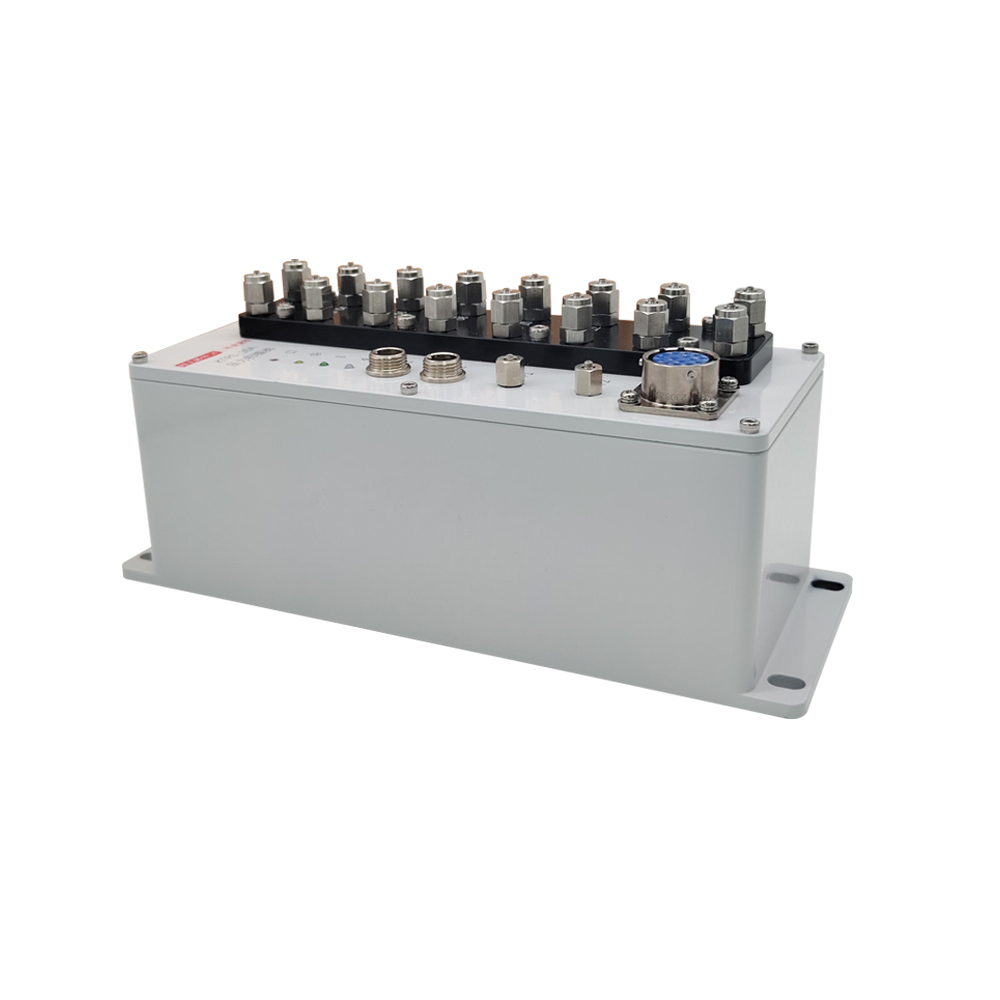

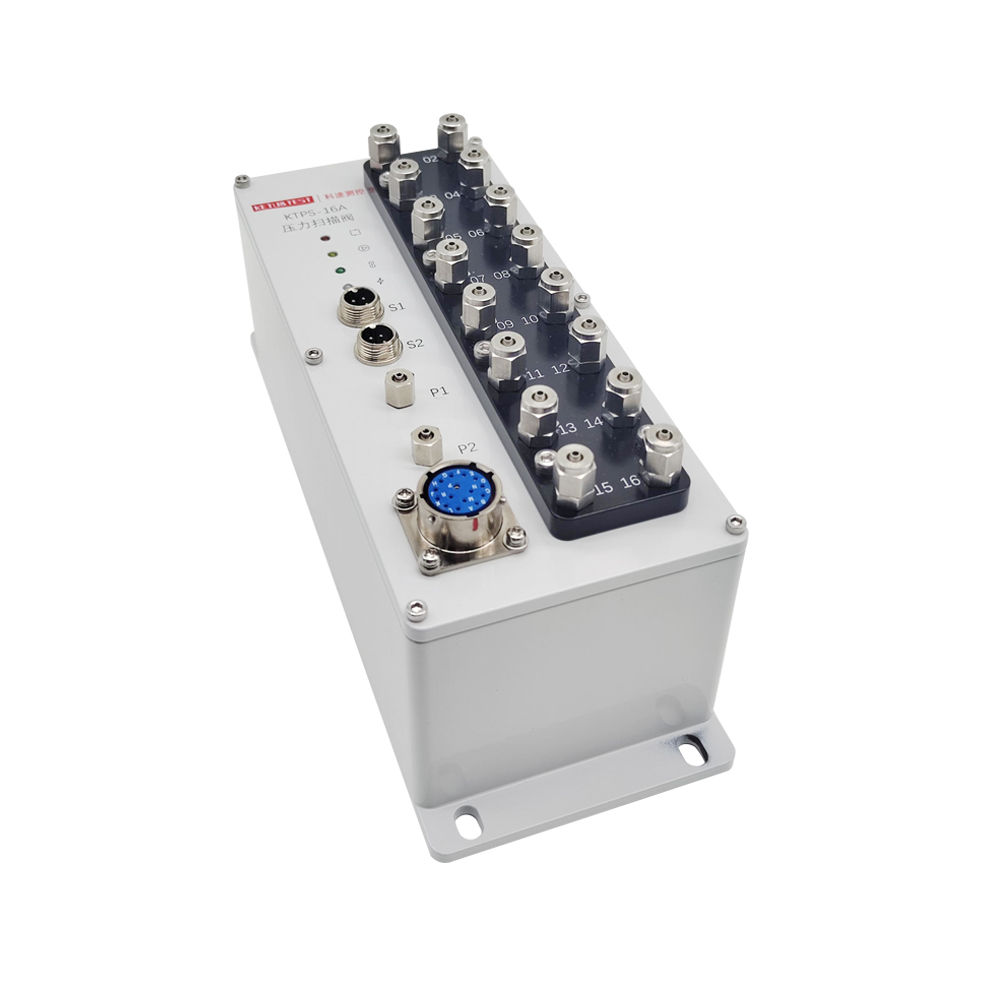

KTPS-16A Pressure Scanner

KTPS-16A Pressure scannerThe KTPS-16A pressure scanner integrates 16 high-precision silicon piezoresistive sensors internally. The sensors and the acquisition system undergo overall temperature compensation, making it primarily suitable for multi-channel gas pressure testing. It features high accuracy (0.05%FS full scale), excellent reliability, and supports switching between various pressure measurement modes such as absolute pressure, gauge pressure, and differential pressure. The KTPS-16A is capable of measuring pressure across multiple types of media, including gases, liquids, and gas-liquid mixtures. Its internal pressure sensors are specially treated for enhanced durability. Additionally, it supports the use of customized sensors for measuring special gases such as hydrogen, chlorine, and ammonia.

Lead time：2 Month

Includes 13% VAT

Gauge Pressure Range

Ranges Absolute Accuracy ±500Pa ±2Pa ±1000Pa ±2Pa ±2500Pa ±5Pa ±3kPa ±6Pa ±7kPa ±14Pa ±10kPa ±20Pa ±18kPa ±18Pa ±100kPa ±100Pa -100~+200kPa ±150Pa -100~+240kPa ±170Pa -100~+310kPa ±205Pa -100~350kPa ±225Pa -100~+420kPa ±260Pa -100~690kPa ±395Pa -100~+860kPa ±480Pa -100~1030kPa ±565Pa -100~1350kPa ±725Pa -100~+1720kPa ±910Pa -100~2060kPa ±1080Pa -100~2580kPa ±1340Pa -100~3440kPa ±1770Pa -100~+4480kPa ±2290Pa -100~5170kPa ±2635Pa -100~5860kPa ±2980Pa -100~7580kPa ±3740Pa

Brand	KETU&TEST
Model	KTPS-16A
Pressure Type	Gauge Pressure, Absolute Pressure, Differential Pressure
Full-Scale Accuracy	Within 35kPa full scale: ±0.1%FS Above 35kPa full scale: ±0.05%FS
Gauge Pressure Ranges & Absolute Accuracy	Range	Absolute Accuracy
	±500Pa	±2Pa
	±1000Pa	±2Pa
	±2500Pa	±5Pa
	±3kPa	±6Pa
	±7kPa	±14Pa
	±10kPa	±20Pa
	±18kPa	±18Pa
	±100kPa	±100Pa
	-100~+200kPa	±150Pa
	-100~+240kPa	±170Pa
	-100~+310kPa	±205Pa
	-100~350kPa	±225Pa
	-100~+420kPa	±260Pa
	-100~690kPa	±395Pa
	-100~+860kPa	±480Pa
	-100~1030kPa	±565Pa
	-100~1350kPa	±725Pa
	-100~+1720kPa	±910Pa
	-100~2060kPa	±1080Pa
	-100~2580kPa	±1340Pa
	-100~3440kPa	±1770Pa
	-100~+4480kPa	±2290Pa
	-100~5170kPa	±2635Pa
	-100~5860kPa	±2980Pa
	-100~7580kPa	±3740Pa
Absolute Pressure Measurement Method	Gauge Pressure + Atmospheric Pressure
Differential Pressure Measurement Method	16 pressure channels share one common differential pressure reference port
AD Resolution	24-bit
Number of Channels	16
Compatible Media Types	Gases, Liquids, Gas-Liquid Mixtures
Sampling Frequency	0–10080 Hz per channel (16 channels sample simultaneously; multi-unit networking via switch connection)
Timestamp Output	Absolute or relative timestamp option per data packet; ensures fully traceable data upload and storage
Pressure Ports	4 x 2.5 mm push-to-connect fittings, 1.6 mm expansion tube fittings, stainless steel ferrule connectors
Communication Protocol	TCP/IP
Auto-Zero Capability	One-click software calibration & zeroing
Calibration Interval	12 months
Operating Temperature Range	0–60 °C
Compensated Temperature Range	0–60 °C
Ambient Temperature (Non-Operating)	–20-80 °C
Structure Type	Universal Integrated Type
Trigger Modes	Software trigger, Hardware trigger (3.3 V TTL)
Power Supply	220 VAC, 50 Hz
Software	"Ketusoft" data measurement software (C# based). Features: waveform display, channel selection, multiple pressure unit conversion, one-click calibration, video monitoring, data monitoring, one-click data storage, inter-channel data computation with real-time storage, pressure threshold setting, data storage monitoring, background image switching. SDK provided for customer integration.
